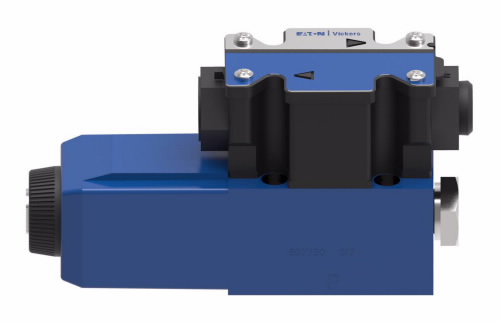

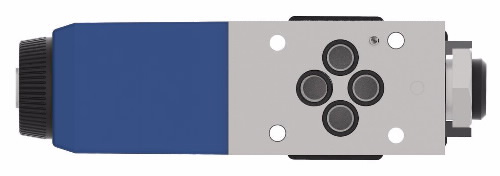

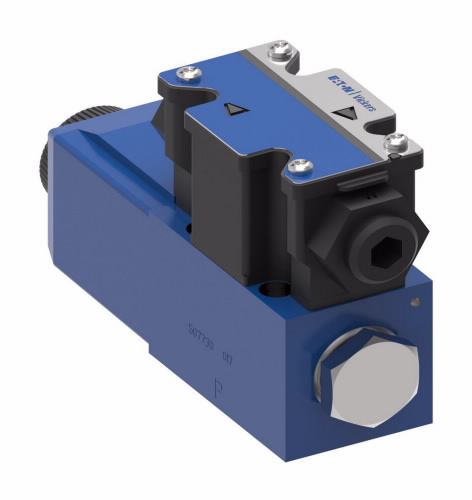

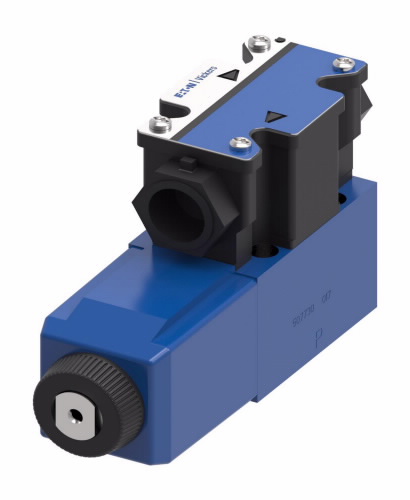

Images are representative only. Please verify with our technical experts as actual product may differ.
02-393626Â DANFOSSÂ |Â DG4V-3S-2A-M-FW-H5-60-EN
Manufacturer:Â DANFOSS
Manufacturer Model #:Â 02-393626
EATON VICKERS DG4V-3 61 DESIGN DIRECTIONAL CONTROL VALVES SINGLE STAGE
Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications
Three- or four-way directional control|Easily mountable on industry-standard surfaces|Thousands of models to suit all applications
- Actuation identification:Â Solenoid BActuation type:Â Solenoid OperatedActuator identification:Â Flag with Standard Build as Per ANSI B93 9Application:Â Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)Body material7:Â Gray IronBuild orientation:Â Solenoid at B Port EndBuild type:Â Spring offset end to endCoil rating:Â 115 Volt AC 60HzCoil type:Â Special protection solenoid to CSA/UL approvalDesign code11:Â 60Diode:Â NoneEccn:Â EAR99Electrical connector:Â Explosion Proof - Special Protection Solenoids To Csa/Ul ApprovalFlow rate12:Â 40 litre per minuteFluid cleanliness:Â 19/17/14 micronFluid compatibility13:Â Petroleum OilsFunction:Â Directional Control ValveGauge port thread type:Â 0.4375 - 20 UNF, SAE ThreadIcc2:Â IV Directional Control ValvesInterface:Â ISO4401-03Leakage:Â StandardLight:Â NoManual override:Â NoneModel Code:Â DG4V-3S-2A-M-FW-H5-60-EN614Performance:Â StandardPressure rating:Â 350 barProduct height:Â 3.57Product height uom:Â inchProduct length:Â 5.75Product length uom:Â inchProduct trade name:Â DG4V-3 61 DesignProduct weight:Â 4Product weight uom:Â poundProduct width:Â 1.8Product width uom:Â inchReducer module:Â NoSeal material16:Â Buna-NSize:Â D03Special features17:Â NoneSpool center condition:Â B Port EndSpool monitor switch:Â NoneSpring arrangement:Â AStage:Â Single StageSub brand:Â VickersTank port rating:Â 100 barValve mount type:Â Subplate/manifold mountedWattage:Â 30 wattWorking temperature max:Â 70 degree CelsiusWorking temperature min:Â -20 degree Celsius
SunSource Distribution Division: SunSource
Price:Â Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
